Design
C-BOX 20’s solid welded steel insulated structure, provides a compact, modern and practical bathroom perfect for both mobile and permanent applications.
Dimension : 8x20x9,6
Weight : 5500lb
Contact Us
Our goal; to create the perfect smart self-cleaning mobile and fixed washrooms with the highest efficiency at the lowest cost.
We can design a unit for any need and budget!!!
Delivery + Set-Up
The C-BOX 20 is designed and made for easy delivery and set-up. A crane is required to remove the unit- and to set it on a flat solid surface.
Dimension : 8x20x9,6
Weight : 5500lb
• Antibacterial walls
• UV disinfection system
• Self disinfection system ULVC
• 2 ADA Ramp accessibility (*on ADA units)
• Self cleaning HVAC mechanism
• Dual communication system (Remote accessibility)
• 86 Sensors option (Full remote accessibility to all malfunctions or control panels)
• GPRS
• Wireless camera
• Dual Connection (Self contain or direct connect)
• Fresh water capacity: 200gl
• 2 full showers (touchless)
• 2 Full ADA combo bathrooms with shower
• 1 full functional office
• 1 Washer /1 Dryer
• Grey water capacity:300gl
• Touchless features
• Automatic door
• Waterless urinal
• Automatic toilet
• Hand dryer
• Baby changing station
• Fire alarm
• Smoke alarm
• Mechanical room
• LED entertainment lights
• Touchless control panels
• Touchless paper distributor
• Automatic light (ON & OFF) inside and outside
• Automatic door lock system remote access
• 500W/120V Heating system
• AC
• HVAC
• Lead time 4-8 weeks
Control Room
All our units have a control room that stores the panels and connections, as well as the fresh water tank and other necessary components to run and maintain the unit.
Dimension : 8x20x9,6
Weight : 5500lb
Interior Design + Components
All our units are built and furnished with top grade accessories- such as stainless steel sinks, toilets, and all other washroom requirements.
Dimension : 8x20x9,6
Weight : 5500lb

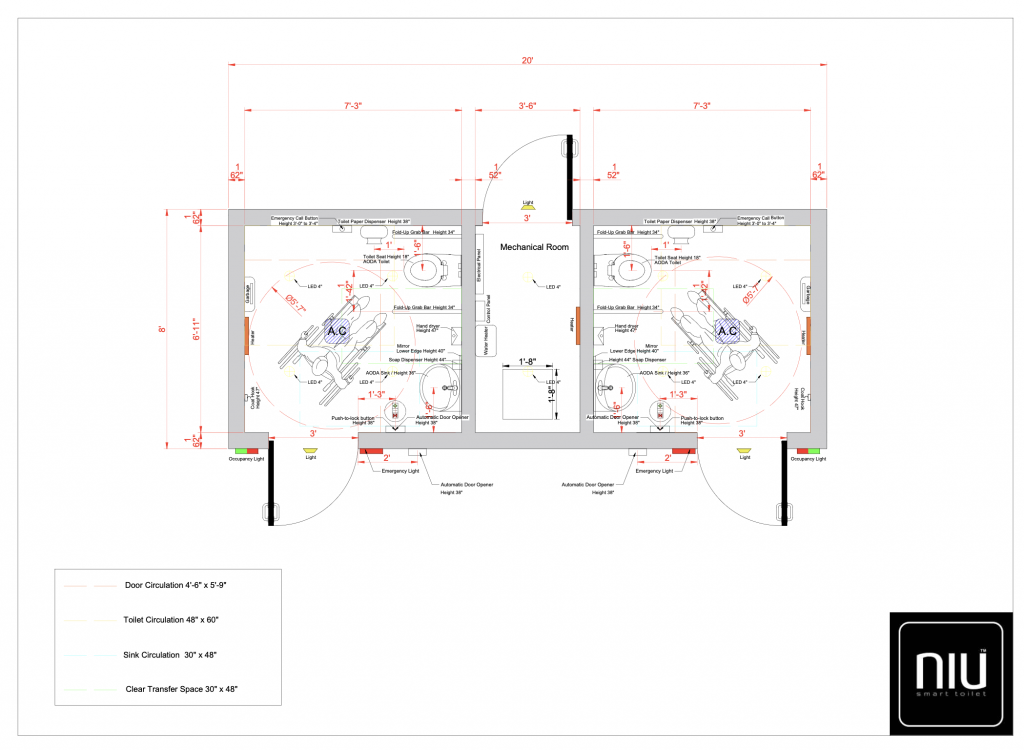

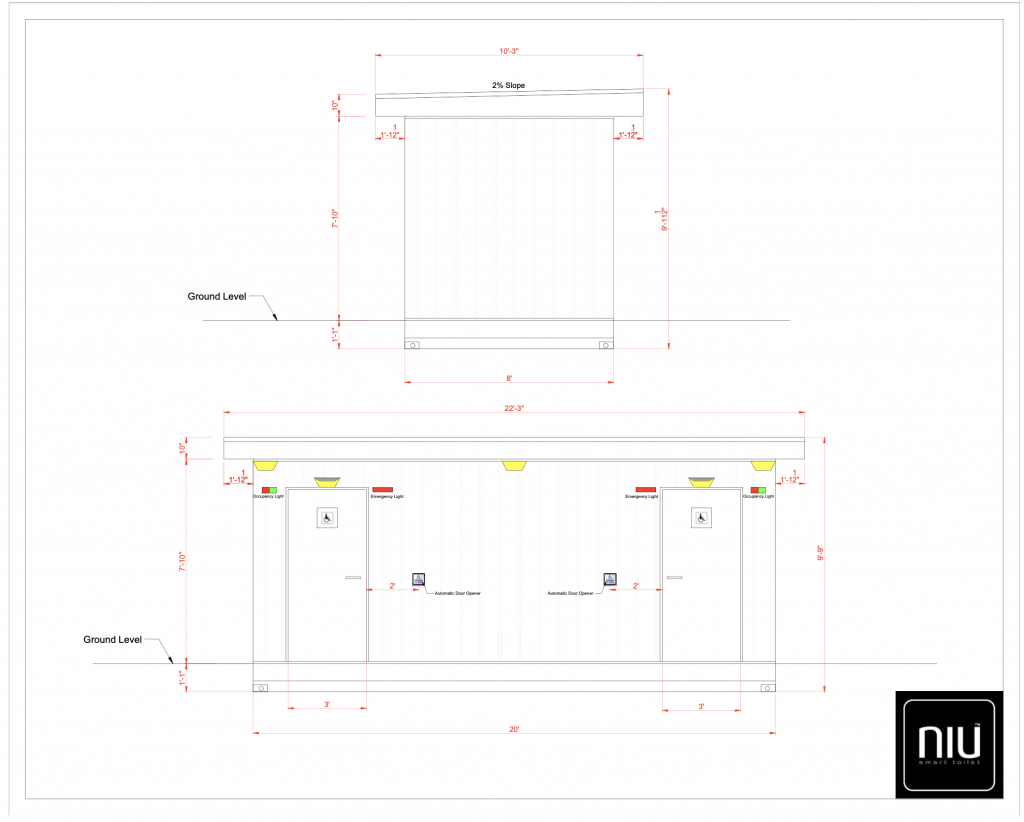

C-BOX 8FTX20FT-2AODA
MANUAL EQUIPEMENT
C-BOX 8FTX20FT-2AODA STATIONS
Specifications
Operation of the Automatism
- AUTOMATIC CLEANING AND DISINFECTION OF THE BOWL AND SEAT AFTER EACH USE
- AUTOMATIC WASHING WITH DISTRIBUTION OF THE DESCALER ANDDISINFECTANT
- AUTOMATIC SEAT DRYING BY HOT AIR
- PROGRAMMABLE FLOOR WASH CYCLE (RECOMMENDED FOR ALL 15-20 USERS)
- COMPLETE AUTOMATIC LOCKING OF THE DOOR DURING THE CLEANING CYCLE
- EXTERIOR LED LIGHTS INDICATING: FREE, OCCUPIED AND CLOSED FUNCTIONS
- INTERIOR LIGHTING AUTOMATICALLY ACTIVATED DURING USE
- MAXIMUM OCCUPANCY TIME 15 MINUTES, ADJUSTABLE AS REQUIRED.AUTOMATIC UNLOCKING AFTER 15 MINUTES
- USAGE COUNTING BOX (DAILY COUNTING) WITH TIMER FOR PROGRAMMINGOPENING AND CLOSING HOURS
- AUTOMATICALLY ACTIVATED EVENING LIGHT WITH ASTRONOMICAL CLOCK
- A HEATING REGULATED AT 20OC IN THE CABIN IN WINTER AND 23OC INSUMMER. AUTOMATIC START OF THE HEATING AT 5°C OUTSIDE
Download the full catalog
Durable Design with Advanced Sanitation Systems
The NIU modular smart toilet is engineered for strength, hygiene, and long-lasting performance. Constructed from reinforced steel panels with a weather-resistant exterior, this unit ensures maximum durability and vandal resistance. Inside, it is equipped with separate men’s and women’s stations, each featuring modern fixtures, urinals, flush toilets, sinks, and touch-free dispensers.
